RANGEMASTER CRUCIFORM SPA TSA5CM, TSA5BF, TSA5

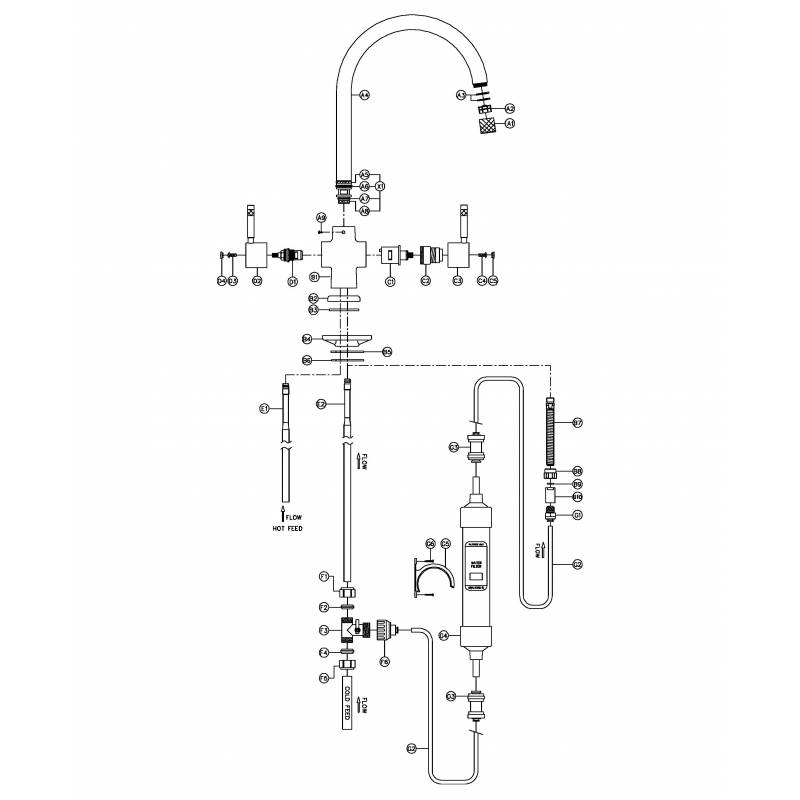

Replacement spare parts for the Leisure Rangemaster Cruciform TSA5 Twin Lever Kitchen Mixer Monobloc Tap.
If your tap is leaking or dripping from the spout then its time to change the ceramic quarter turn cartridges.
Replacement hot cartridge available as TSA5-CR. Known by spare part code 3561R or 1427R.
For the cold / filtered water side you will need SVDIV004-S.
You may need a conversion bush for the hot water cartridge, but you will not know for sure until you remove the valve from the tap.
If they come out together, you can try to separate them so you can reuse the original bush.
However, if you cannot separate them, you will need to purchase a new one (SB27-S) known by original spare part code 3868R.
If your tap is leaking at the neck (where the swivel spout joins the tap body), you will need to replace the spout seals.
Replacement oring kit available as SK19-S. Known by spare part code 1425R.
Please note that you must use silicone lubricant on the new O-rings when they are fitted.
We can confirm that the replacement compatible aerator is available in two finishes: chrome (SR63C-S) and brushed (SR63CB-S). Known by the spare part code 1263R.
We now stock replacement carbon inline water filters. Our water filters are manufactured in the UK and are WRAS approved.
Available as SFILTER02-S or SFILTER02-3ED (Triple pack).
We now have new Compatible replacement lever handles available which replace code 3259R Please note our handles are plain and do not have H / C marked on them. Handles come with the screw.
If you need a new screw separately for the handle this is our SS81-S. The replacement indices are for the original levers which have a screw in the end not a grub screw.
Rangemaster TSA5 Frequently asked questions
How to I remove the TSA5 tap lever / handle?
1. Use 2mm allen key to undo handle.
2. The grub screw is located on the underside of the handle.
3. You can pull the lever forwards to access the screw at the back if you need more space.
How do I know if need the adaptor bush?
Until you remove the cartridge from the tap you will not know if you need this part. This is because sometimes the bush gets corroded to the tap and remains in the tap body, and other times it comes out corroded to the tap cartridge.
Can I remove the adaptor bush from the old cartridge?
Yes you can but it can be very hard to remove due to corrosion. You can try using very hot water, followed by cold water over it, to help break the corrosion seal. The bush unscrews from the cartridge anticlockwise. You will likely ed to use some grips or put it in a vice to remove it. If you cannot separate it you will need to replace the bush.
How do I remove the spout and replace the o'rings inside the spout?
Use 2.5mm allen key to undo grub screw at the back holding the spout in place.
pull spout up and out of the tap body. You can watch our How to video above.
What size spanner do I need to remove the TSA5 tap handle?
You will need a 17mm or an adjustable spanner
