CARRON PHOENIX DANTE FILTERTAP SPARE PARTS
Replacement spares to fit the Carron Phoenix Dante kitchen mixer filter chrome lever tap.
Watch our video below for guidance / how to remove your handles and change your Quarter turn ceramic cartridge.
If your Dante kitchen filter tap is leaking or dripping from the spout then its time to change the ceramic quarter turn cartridges.

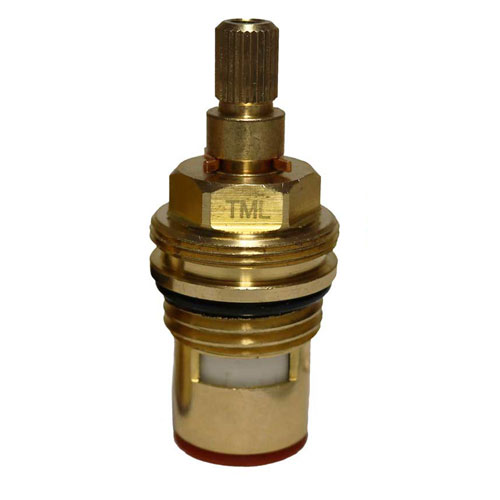

Very Easy to replace with just an allen key and a spanner. Hot Replacement cartridge known by spare part code 3561R / 2552R 2552R-H 2552R-C.

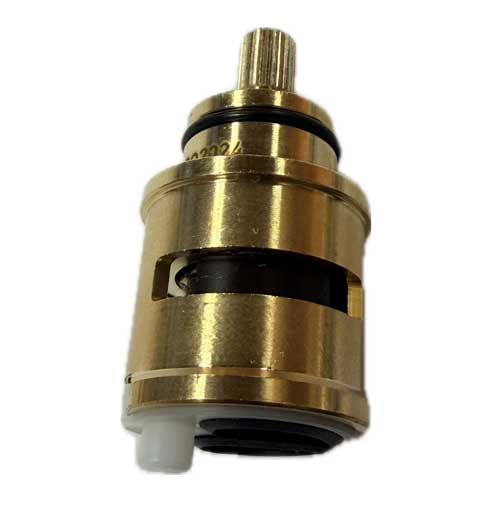

Cold / Filter Diverter Cartridge known by 133.0432.485, 3466R, SP3466
Both Cartridges have 28 splines.
On the hot side you may need a conversion bush but you wont know this until you remove the valve from the tap.
Sometimes the adaptor bush remains in the tap and other times it comes out stuck to the cartridge.
If they come out fused you can try and separate the bush which means you can re use the bush.
If you cannot get it apart then you will need to purchase a new bush. You can return any unused parts to us.
Adaptor bush known by spare part code 3868R. Replacement code SB27-S.
If your tap is leaking at the neck (this is where the swivel spout joins on to the tap body) then you need to replace the Spout seals.
The Seals/O'ring kit is known by code 1260R. You must use silicone lubricant on the new O Rings when fitted.
We now have new compatible replacement handles available which replace code 3259R.
Please note our handles are plain and do not have H / C marked on them.
Our handles come with the screw. If you need a new screw separately for the handle this is our SS81-S.
We can supply a compatible inline pure water filter cartridge which will replace the complete cartridge housing. The filter pipes will connect directly in to our cartridge if your filter pipes are 6mm. If replacing your original cartridge with ours you will need to order the cartridge with the clip so you can attach it to the wall. Our Water Filter Cartridges are manufacturerd in the UK and are WRAS Approved.
Carron Phoenix Dante Filter tap Frequently asked questions
How to I remove the Dante filter tap handle?
Step 1. Use 2mm allen key to undo handle. The grub screw is located on the underside of the handle.
Step 2. Pull lever off.
Step 3. Unscrew shroud (it will unscrew anticlockwise)
Step 4. Use 17mm spanner to undo cartridge anticlockwise
How do I know if need the adaptor bush?
Until you remove the cartridge from the tap you will not know if you need this part.
This is because sometimes the bush gets corroded to the tap and remains in the tap body, and other times it comes out corroded to the tap cartridge.
Can I remove the adaptor bush from the old cartridge?
Yes you can but it can be very hard to remove due to corrosion.
You can try using very hot water, followed by cold water over it, to help break the corrosion seal.
The bush unscrews from the cartridge anticlockwise. You will likely need to use some grips or put it in a vice to remove it.
If you cannot separate it you will need to replace the bush.
How do I remove the spout and replace the o'rings inside the spout?
Use 2.5mm allen key to undo grub screw at the back holding the spout in place.
pull spout up and out of the tap body. You can watch our How to video above.
What size spanner do I need to remove the Dante tap handle?
You will need a 17mm or an adjustable spanner.

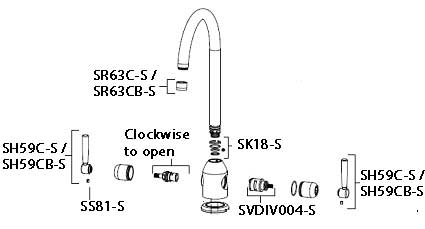

You can find the Dante tap / instruction diagram below.
