WREN JOVE KITCHEN TAP SPARES
Tap Magician compatible spare parts to repair the Wren Jove Twin Lever Mixer tap TA.WRN.008.

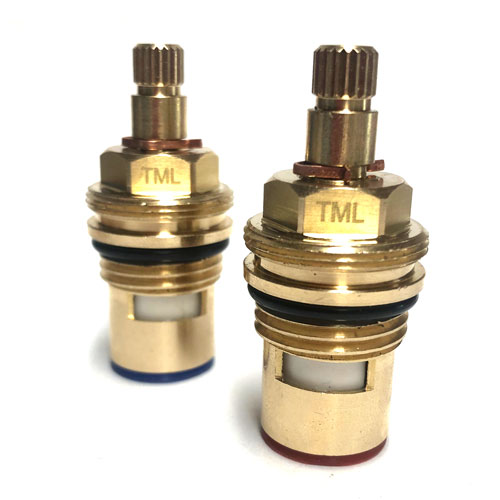

If your tap is dripping or leaking out of the spout then it is time to replace / change the quarter turn ceramic disc cartridges.

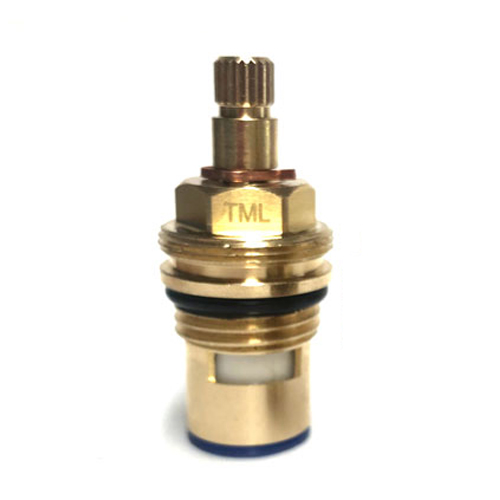

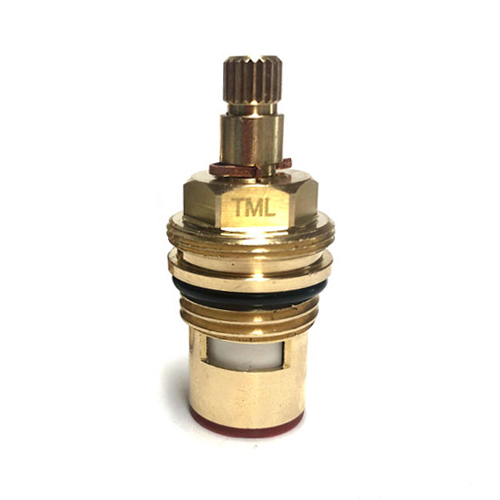

You will require our Anticlockwise open cartridge for the cold side, and clockwise open for the hot side,
If you require both then you can select "Pair".
Hot and cold valve replacements available. Cartridge has 20 teeth on spline.
Your original Cartridge may have PAINI ASME A112.18.1UPC ANSI NSF61 KK G90 stamped on it.
Replacement spout available as SPOUT545. Complete with orings and aerator. Known by spare part code UKH3S.

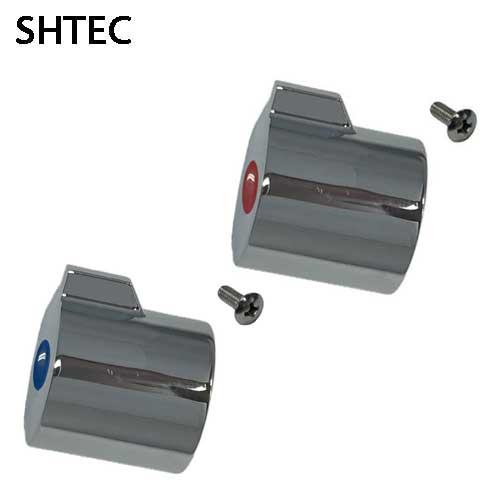

Handle lever head available as complete with indice and retaining screw.
How to remove the Wren Jove handle lever head:
Before replacing the cartridge you will need to turn the water off.
Step 1. Remove the end screw cap cover
Step 2. Use a crosshead screwdriver to undo the handle retaining screw screw
Step 3. Pull off the lever handle
Step 4. Use 17mm or adjustable spanner to undo cartridge anticlockwise
Step 5. Screw in the new cartridge clockwise
Step 6. Tighten the cartridge enough to seal, but avoid over-tightening
Watch our how to video for further general guidance on removing tap handles and replacing tap cartridges.
