CAPLE AVEL AVE4 KITCHEN TAP SPARES
Tap Magician compatible spare parts to repair the Caple Avel AVE4 Kitchen Monobloc Kitchen Tap AVE4CH / AVE4BC / AVE4BN.
For guidance / instructions of how to replace a tap valve step by step please
click here.

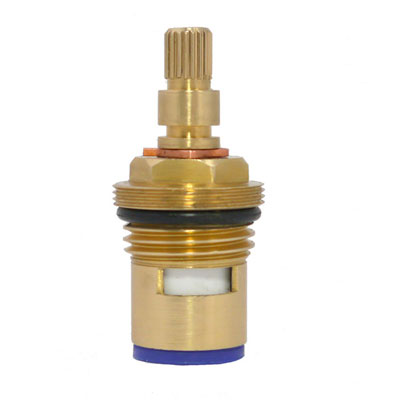

If your tap is dripping or leaking out of the spout then it is time to replace / change the quarter turn ceramic disc cartridges.
Hot and cold valve replacements available.
Cartridge has 20 teeth on spline.
You will require our Anticlockwise open cartridge for the cold side, and clockwise open for the hot side, If you require both then you can select "Pair"
Please note that your cartridge may remove from the tap body with the adaptor bush attached.
We do not stock this adaptor bush, so you will need to remove it from your current cartridge and reuse it on the replacement.
If your tap is leaking where the spout connects to the tap body (the neck), you likely need to replace the O-rings inside the spout.
How to remove the Caple Avel spout and replace the O-rings:
1. Use 2mm allen key to undo screw at the back of the spout.
2. Pull spout out of tap body
3. Remove old O Rings
4. Replace with new O Rings
5. Apply grease to new O Rings
6. Fit spout back in to tap body.
How to remove the Caple Avel handle and replace the cartridge:
1. Remove the end white cap (hot and cold indices).
2. Undo screw using crosshead screwdriver.
3. Pull lever off.
4. Undo shroud (it will unscrew anticlockwise)
5. Use 17mm or adjustable spanner to undo cartridge anticlockwise.
6. Fit new cartridge screwing in clockwise.
7. Replace handle
