CARRON PHOENIX BALI L SPOUT TAP SPARES
Tap Magician compatible spare parts to fit the Carron Phoenix Bali L Spout kitchen tap.

For guidance / instructions of how to replace a tap valve step by step please click here

If your tap is dripping or leaking out of the spout then it is time to replace / change the quarter turn ceramic disc cartridges.
Original spare part codes known by 3819R, hot and cold valve replacements available.

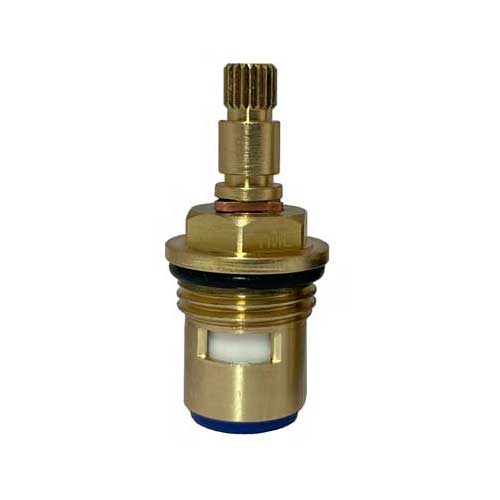

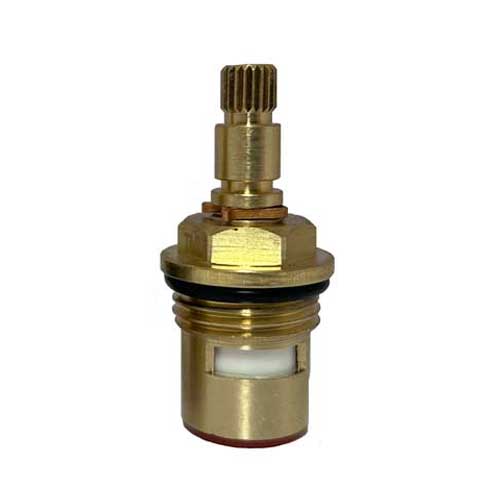

The cartridge has 20 splines. You will require our Anticlockwise open cartridge for the cold side, and clockwise open for the hot side.
If you require both then you can select "Pair".

If your tap is leaking from the neck (where the spout joins the tap body) then the seals inside the spout need replacing.
When you replace the new rubber seals they need greasing with a silicone grease.
The original O'ring kit is known by 2268R.

If you require a new antisplasher / aerator this is our part SR18C (available in Chrome only).
Original codes known by 1268R.

How To remove the handle:
Remove the handle retaining screw by using a 2.5mm allen key. You will then be able to remove the handle.
Once removed use a crosshead screwdriver to remove the screw holding the brass handle insert onto the cartridge.
With this is removed, you can undo the valve cover retaining screw with a 2.5mm allen key and then unscrew the valve cover.
You will then be able to remove the valve to replace.

How To remove the spout and replace o'rings:
You will first need to unscrew the spout retaining screw by using a 2.5mm allen key.
You can then lift the spout up and replace the o rings at the base with the new parts (SK20-S).

You can find the Bali L Spout tap diagram/instructions below.
Frequently asked questions about your Carron Phoenix Bali L Spout tap.

How to identify my Carron Phoenix tap? How to repair my leaking Carron Phoenix Bali L Spout tap? Spares available for Carron Phoenix Bali L Spout.
Any further questions contact our experienced technical team.
