PERRIN & ROWE RUBIQ TAP SPARES
Replacement tap cartridges to suit the Perrin-And-Rowe Rubiq Sink Mixer Tap. Compatible with tap codes 4208, 4210, 4308 and 4310.


If your tap is dripping or leaking out of the spout then it is time to replace / change the quarter turn ceramic disc cartridges.
We can supply the spline adaptor but not the circlip. However you can easily reuse your old parts.
Your old adaptor may come out on the cartridge or remain in the handle.

Original spare part code 9.13247 , 9.13249. This tap model takes 2 valves (1 Hot FR9762 and 1 Cold FR9763).
Hot and cold cartridges available.

If your tap is leaking from the neck (where the spout joins the tap body) then the seals inside the spout need replacing.
When you replace the new rubber seals they need greasing with a silicone grease.

You can find the Rubiq tap diagram / instructions below.

How to remove my Rubiq tap head / handle and replace the cartridge:
1. Pull the lever off. A firm pull will be required outwards and upwards.
2. Use 17mm Spanner to undo cartridge (anticlockwise)
3. Remove white clip from around the body of the old cartridge. We do not supply this part and must be re-used.
4. If spline adaptor has remained in the handle this will need to be removed from inside the handle.

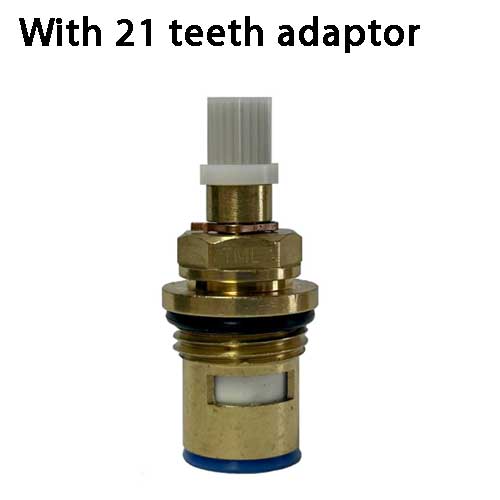

The New cartridge comes complete with spline adpator.
5. Fit new cartridge (Screw in to tap body clockwise) and fully tighten with spanner.
